Back in August of 2021, we compared NCA (lithium nickel cobalt aluminum oxide) batteries with LFP (lithium iron phosphate) batteries - "Tesla's LFP (iron) batteries compared. Which one should you buy?". NCA batteries had been the standard for all Tesla models in the USA, but Tesla’s plans to switch to LFP in Model 3s and Model Ys prompted that article. Tesla even offered more rapid delivery to customers waiting for the cars they had on order if they decided to get their car with LFP batteries.

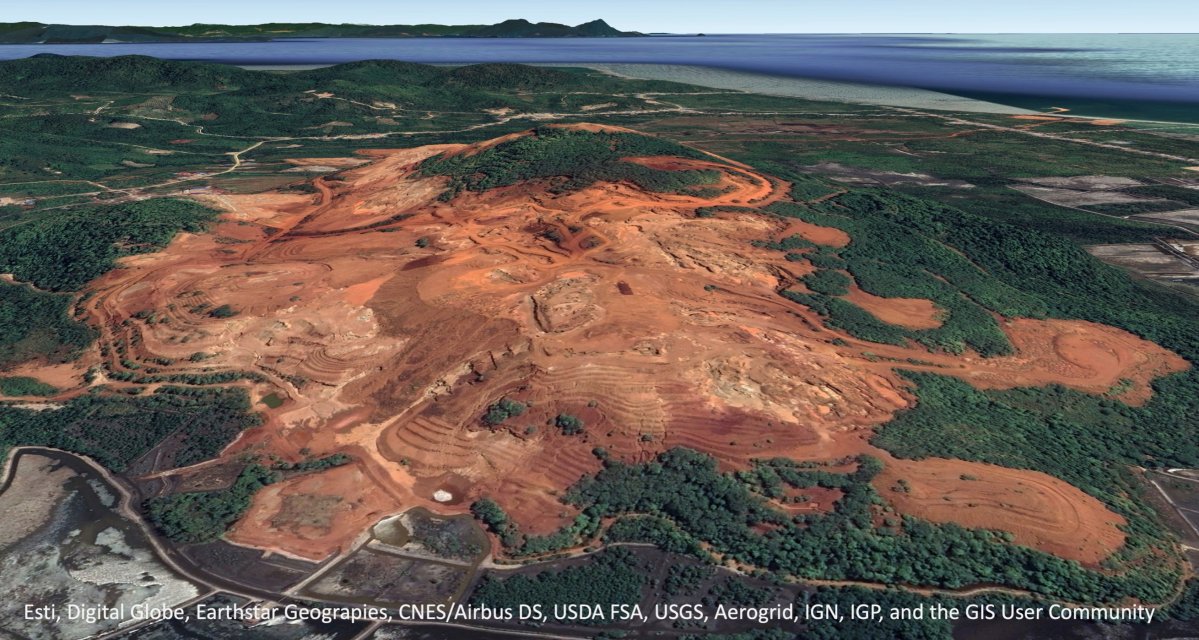

A nickel mine in Indonesia
There are trade-offs between these two battery types in terms of weight, range, consequences of carrying a full charge, regenerative braking, and cold weather behavior which are all discussed in the column mentioned above. These are all valid considerations, but working from the assumption that a prime motivation of most people buying an electric car is to promote a healthy environment and a healthier planet (by cutting CO2 emissions), it should also be mentioned that these two battery chemistries have vastly different implications for the environment. Crucially, NCA batteries are built with a lot of nickel (about 18 kg in a Tesla) whereas LFP batteries have none. But high demand for nickel for Teslas (and many other electric vehicle models) is accelerating strip-mining in Indonesia and the Philippines. Mining is one thing, but strip mining is more problematic.
Strip mining on tropical islands in Southeast Asia is especially harmful because these are centers of biodiversity with large numbers of unique species of plants and animals, many of which are endangered - some critically so. Unlike forest clearing, where the land retains some value for agricultural production, strip mining obliterates what is there and it will likely be decades, if not centuries, before such areas are productive again. When not rainforests, this strip mining is destroying agricultural land. Plus, Southeast Asia has high rainfall, so once the land is laid bare, erosion carries large amounts of sediment onto nearby coral reefs.
Details matter, however, and in this case it should be pointed out that nickel is mined from two sources - laterite and sulfide. Laterite deposits (as in Indonesia and the Philippines) are formed by the weathering of ultramafic bedrock in areas of high seasonal rainfall, along ridges and mountain shoulders. Through leaching, nickel accumulates 10-25 m below the surface and the only way to get at it is to clear off the top 10 m and everything living there.
In contrast, sulfide deposits are in the bedrock and nickel is extracted by hard-rock mining, sometimes near the surface, but often far underground. This distinction is important for electric vehicles because sulfide deposits are smelted into the highly pure nickel which is required for batteries. When laterite nickel is smelted, the lower purity nickel primarily goes to other uses, such as stainless steel. However, if laterite nickel is processed by High Pressure Acid Leaching (HPAL), nickel of sufficient purity for batteries is produced, but at present not very much is produced this way. Of the other uses of nickel besides for batteries, some processes also need high purity nickel, but some can use either high or lower purity nickel. Another important point is that there are not likely prospects for increased production of sulfide nickel, whereas there are extensive areas available for mining laterite nickel.
This may all seem convoluted, but what this all means is 1) as consumption of sulfide nickel for batteries grows with the expansion of the electric vehicle market, this will take up more and more of available sulfide supplies; 2) processes which can use either will hence shift to laterite nickel. Thus, while some may point out that electric vehicle batteries, for the most part, do not use laterite nickel and hence are not the cause of the expanding strip-mining occurring in Indonesia and the Philippines (and in a few other places such as Venezuela and Brazil), it is nevertheless true that additional demand for laterite nickel is a consequence of vehicle batteries taking an increasingly large portion of the available sulfide nickel.
Despite much press coverage last year, Tesla's transition to LFP batteries has only made it to the Model 3 Rear Wheel Drive model (in the USA). Other models may get LFP batteries in the future, as they have in Europe. So, buying a Tesla is a great way to contribute to the decarbonization of your personal transportation, but to avoid the harmful impacts of high-nickel battery chemistries, lithium iron phosphate (LFP) is the best, even if you have to be selective as to which model you get.
Subscribe
Subscribe to our newsletter to stay up to date on the latest Tesla news, upcoming features and software updates.
Back in 2023, Tesla put together a rather unique Supercharger site idea - one with a CyberCanopy. This canopy is intended to provide solar power for Supercharging, helping to reduce the impact on the local grid while also providing a futuristic and Cybertruck-themed location that would set it apart.
Unfortunately, the plans never moved beyond the filing stage. Instead, Tesla opened a standard-looking Supercharger at the same Canton, Massachusetts location. However, the site is still well-situated just off the highway and benefits from natural tree cover in the parking area.
However, Tesla is at it again with a concept for another CyberCanopy with RGB lighting. Thanks to MarkoRP for spotting this. No April Fool’s this time.
We want to build a few Superchargers cool enough to be worthy of the trip itself. - Max de Zegher
CyberCanopy 2
This second Supercharger with CyberCanopy is set for Roswell, New Mexico, at the Whataburger in town. Featuring just eight stalls, this will be one of Tesla’s smaller Supercharger sites, but for what it lacks in size, it makes up for it in uniqueness. The charging stalls are covered from the rain by a futuristic, Cybertruck-themed canopy, which will have solar panels installed on the top of it.
According to the plans, the CyberCanopy boasts 20.88kW of solar panels on its roof, providing shelter from the elements while also providing some power back to the grid.
RGB Lighting
At nighttime, the Supercharger will make a big statement. Tesla intends to light the long edges of the canopy, which will not only look amazing, but it’ll actually make finding the Supercharger easier in a large parking lot.
The lighting coming off the edge of the canopy reminds us a lot of the lightbar on the Cybertruck and now the new Model Y. It’s definitely the direction Tesla is moving for all their models, so expect all future models to have it, including the new Roadster and the next-gen model.
Tesla’s Max de Zegher also took to X after the plans for the new Supercharger were found and shared the image above. He stated that Tesla wants to build a few cool Superchargers that will be worth stopping at, even if they’re out of the way a little bit. So it seems like this isn’t just a concept, but an idea that Tesla wants to expand to several areas around the country or world.
We want to build a few Superchargers cool enough to be worthy of the trip itself. Wish we could have kept it under wraps for longer, but submittal was needed for Planning Approval. We can't hide anything from @MarcoRPi1! 🙂 pic.twitter.com/X2WaKDd408
This particular site doesn't have a Megapack or other form of energy storage, unlike the upcoming Harris Ranch Supercharger site in California. That means that Tesla won’t be storing the solar energy gained from this site, but instead will be either offsetting the immediate grid impact or serving energy back to the grid when the site isn’t actively charging.
Tesla will likely be incorporating V4 Superchargers, including both V4 posts and the new, more powerful V4 Cabinets, as the permit states that Tesla will be redesigning the site internally before beginning construction. For Cybertruck owners, 500kW charging may be around the corner.
We’re hoping Tesla continues to deploy these kinds of Supercharger sites around the world - they make a stylistic statement about Tesla’s futurism, like the Shell gas station that was upcycled into a Supercharger site earlier this year in Spain.
They also make a big impact for ownership because it is a far more comfortable charging experience when you stop at a site that’s shaded from the elements - and one that’s better for the environment with offset emissions.
It was a rainy April 1st when a news-searching author went on a delve into the depths of April Fools to find fact from falsehood. And while we found a lot of fantastic jokes, we also found some good ideas.
So, with a shoutout to MarcoRP on X, whose April Fool’s Joke gave us a good run for our money for a couple of minutes, we thought to ourselves - what would a Cybercab Charging Station / Cleaning Hub really look like?
Cybercab Wireless Charging Sites
Now, before continuing, we’d like to point out that the image up top is a joke from Marco - it isn’t an accurate or real site map submission from Tesla. However, it gave us the impetus to think critically about what is required for a Robotaxi fleet, based primarily on the Cybercab, to be able to service a city.
Requirements
Tesla will likely need to charge a small fleet of Cybercabs at a single time and in a single place. That means that the site needs to be large enough to cover a major metro area while also still being compact enough to not cost too much money to build out.
In addition, we need to factor in charge times. The Cybercab is likely to launch with a battery around 50 kWh, which will result in a range of approximately 300 miles. With that much range, the average Cybercab may not need to charge more than once or at all during daytime shifts, so instead, most of the vehicles will charge overnight.
MarcoRP
Math and Charge Times
The overnight charging means that most of these vehicles could be charged slowly. When we did some back-of-the-napkin math last year, we determined that Tesla’s wireless charger will likely peak around 17 kW (for comparison, Tesla’s Wall Connector at 32 amps charges at about 7 kW). If we scale Tesla’s wireless charger down slightly to 10 kW, accounting for some energy loss and the potential size of the site, that means a Cybercab will be able to charge in about 5 hours.
Tesla’s upcoming V4 Supercharger unit can currently handle 1.5MW per cabinet, but this slower-speed charging is A/C, not DC, which means there is a step-down loss of about 3-5%. Let’s make that a comfortable 10% for any other overages, but we can estimate around 1.35MW of power. That 1.3MW will easily handle charging up to 100 Cybercabs at once - all wirelessly, using Tesla’s unique beam-forming and beam-steering technology to keep efficiency high at every single stall.
Within about 5 hours, a whole fleet of 100 Cybercabs could be charged overnight when electricity rates are cheaper and still be out in time for the morning commute.
While this is all just hypothetical, it really does make sense that Tesla will be establishing these sites that won’t require much space or a ton of energy.
Tesla recently curtained off a large section of the parking garage at Giga Texas, as well as some of their chargers on the eastern end of the facility, leading us to believe they may just be testing this at scale internally.
There’s a lot to look forward to with Tesla’s V4 Supercharger deployment coming this year and with Robotaxi launching in just a couple of months.
