Tesla Updates Owner's Manual: Reveals Improvements to Autopark, Valet Mode, Cabin Radar and Construction Info

By Karan Singh
Not a Tesla App

Tesla continuously updates their vehicle owner’s manuals to reflect the latest software updates and the Holiday update is no exception. We often comb through (thanks Niner!) the owner’s manual and find all the undocumented changes that weren’t mentioned in the release notes.

The 2024.44.25 update included several changes which we’ve categorized into various categories below to make them easier to read.

Service Maintenance Changes

Front Camera Window Cleaning

Tesla has added new instructions indicating that the inside of the windshield within the front camera enclosure (behind the rearview mirror) must be cleaned periodically. Previously, there was no indication of this being a regular maintenance item.

Tesla now advises users to schedule cleaning service if it is needed by checking the new maintenance section under Vehicle Controls > Service > Maintenance. Tesla recommends that cleaning be scheduled through a service appointment.

If you’re interested in doing this task as a DIY, you can search your relevant vehicle’s Service Manual for “Quad Camera Cover - Upper (Remove and Replace).” The procedure is not too difficult, but you’ll, at a minimum, need a tool to pry trim-free safely. We recommend a service appointment if you’re not confident in doing that.

Desiccant Bags

Tesla has also gone ahead and removed another set of instructions. Previously, Tesla indicated that the desiccant bag in the A/C portion of the heat pump required replacement every four years. This has now been removed from the manual.

This change is likely because Tesla saw no need to continue replacements of these desiccant bags, which could have been superfluous. It seems likely that the desiccant bags last far longer than 4 years - likely well past the vehicle’s warranty period.

This particular change only applies to vehicles with heat pumps. Older vehicles not equipped with heat pumps (such as a legacy Model S or older Model 3s) still have the desiccant replacement indicated at the 4-year mark.

Vehicle Dynamics

Regenerative Braking Setting

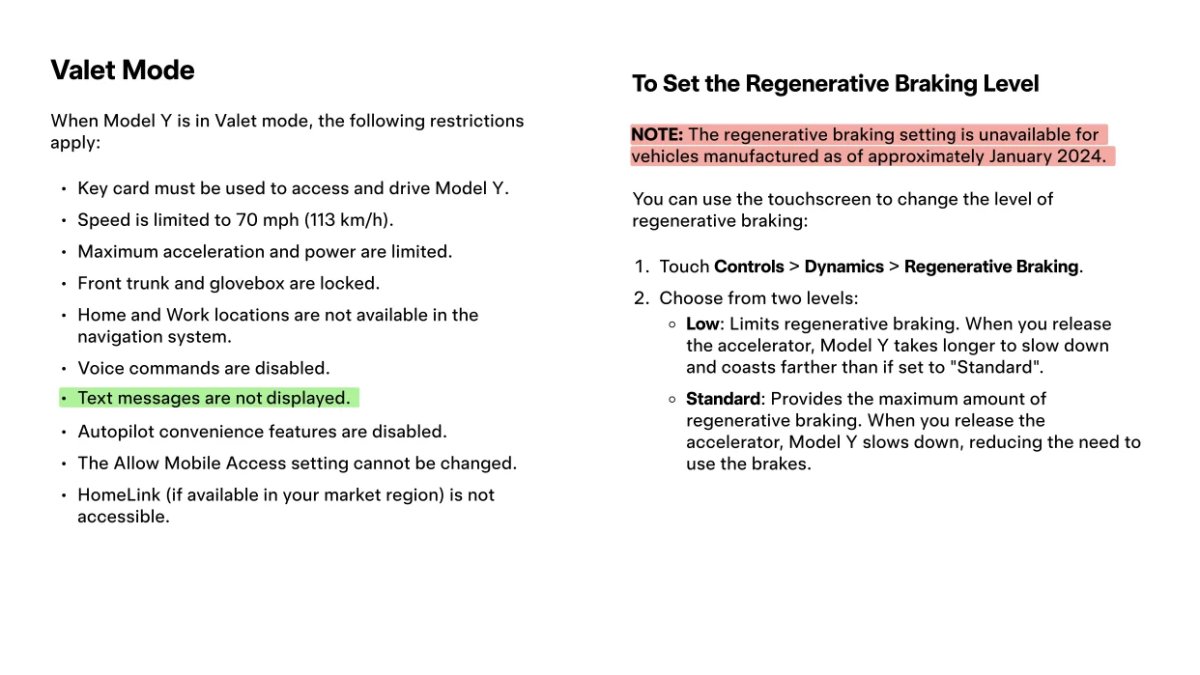

Tesla offers two regenerative braking options on older vehicles, Low and Standard. However, the low setting was removed on vehicles after January 2024. While the normal setting may take a while to get used to for new EV owners, it increases the vehicle’s efficiency and affects the numbers Tesla can show for the vehicle’s EPA range.

What’s interesting in this version of the owner’s manual removed the note saying that regenerative braking options are not available on vehicles manufactured after January 2024.

This appears to indicate that regen braking options could come back as a setting in the future, at least in some fashion. Keep in mind that this doesn’t indicate that the also-removed Stopping Modes are coming back - that part of the manual still has the relevant text about it being removed.

Steering Wheel Weight

This is a relatively simple naming change. Tesla has renamed the steering wheel weight option from Medium to Standard. There are no additional changes here except renaming.

Construction and Accident Alerts in More Regions

Tesla began adding new map icons, including road closures, accidents, and construction within the US, as part of update 2024.2. The text indicating this feature was limited to the United States has now been removed, which means that the feature is expected to roll out to other regions.

Construction and Road Closures are already available in Canada, so we’re likely just waiting for more data providers to work with Tesla for this addition.

Parental Controls

When you enable Require Safety Features in your vehicle’s parental controls, the below options will be automatically enabled and won’t be able to be changed or removed.

  • Automatic Emergency Braking (AEB)

  • Obstacle-Aware Acceleration

  • Automatic Blind Spot Camera

  • Blind Spot Collision Warning Chime

  • Automatic 911 (Emergency) Call

  • Allow Mobile Access

  • Park Assist Chimes

  • Lane Departure Avoidance - Locked to “Assist”

  • Speed Limit Warning Set to Chime

    • Speed Limit: Set to Relative

    • Offset Set to +5 mph (8 km/h)

  • Forward Collision Warning - Locked to “Early”

New to parental controls are the speed limit setting being set to relative and the offset being set to +5 mph.

Valet Mode

Not a Tesla App

Additionally, Valet Mode, which prevents drivers from using certain vehicle features such as Autopilot/FSD and other features, also improves privacy by removing home and work addresses, access to driver profiles and more.

With the Christmas update, it’s adding one more thing to the list. If your device is still connected to the vehicle via Bluetooth while Valet Mode is turned on, the vehicle will no longer show or read text messages.

Valet Mode prevents access to over a dozen features and even forces the vehicle to remain in Chill Mode to reduce acceleration. Check out our guide to read all the features and restrictions of Tesla’s Valet Mode.

Strike Outs & Autopark

Vehicles with a cabin camera can receive up to five strikes before Autopilot features are no longer available. While vehicles without a cabin camera can receive three strikes. Autopark was previously considered to be a part of this, meaning if you strike out, you’d also lose access to automated parking.

However, now, even if you strike out, you’ll still have access to Autopark. Remember that strikes reset one per week for every week of strike-free driving.

Camp Mode Ports & Sockets

As part of a text change (no feature change), Tesla now points out that Camp Mode will keep the vehicle’s USB ports and 12V sockets operational. There is no change to this functionality after Tesla disabled Sentry Mode 12V Socket access.

Cabin Radar

Last but not least, is that the Cabin Radar is now primarily used for cabin occupancy rather than seat sensors. Tesla did this to both address a recall, and to use the cabin camera sensor as a backup. The cabin radar is located right above the rearview mirror in newer Tesla models, close to the cabin camera.

Tesla now indicates in the manual that blocking the cabin radar or cabin camera will throw errors and prevent Autopilot or FSD from engaging.

This version of the owner’s manual includes various changes. While some are minor, some are definitely interesting and hint at other features coming soon.

Tesla Plans CyberCanopy Supercharger with RGB Lighting and UFO-Inspired Design

By Karan Singh
Not a Tesla App

Back in 2023, Tesla put together a rather unique Supercharger site idea - one with a CyberCanopy. This canopy is intended to provide solar power for Supercharging, helping to reduce the impact on the local grid while also providing a futuristic and Cybertruck-themed location that would set it apart.

Unfortunately, the plans never moved beyond the filing stage. Instead, Tesla opened a standard-looking Supercharger at the same Canton, Massachusetts location. However, the site is still well-situated just off the highway and benefits from natural tree cover in the parking area.

However, Tesla is at it again with a concept for another CyberCanopy with RGB lighting. Thanks to MarkoRP for spotting this. No April Fool’s this time.

We want to build a few Superchargers cool enough to be worthy of the trip itself. - Max de Zegher

CyberCanopy 2

This second Supercharger with CyberCanopy is set for Roswell, New Mexico, at the Whataburger in town. Featuring just eight stalls, this will be one of Tesla’s smaller Supercharger sites, but for what it lacks in size, it makes up for it in uniqueness. The charging stalls are covered from the rain by a futuristic, Cybertruck-themed canopy, which will have solar panels installed on the top of it.

According to the plans, the CyberCanopy boasts 20.88kW of solar panels on its roof, providing shelter from the elements while also providing some power back to the grid.

RGB Lighting

At nighttime, the Supercharger will make a big statement. Tesla intends to light the long edges of the canopy, which will not only look amazing, but it’ll actually make finding the Supercharger easier in a large parking lot.

The lighting coming off the edge of the canopy reminds us a lot of the lightbar on the Cybertruck and now the new Model Y. It’s definitely the direction Tesla is moving for all their models, so expect all future models to have it, including the new Roadster and the next-gen model.

Tesla’s Max de Zegher also took to X after the plans for the new Supercharger were found and shared the image above. He stated that Tesla wants to build a few cool Superchargers that will be worth stopping at, even if they’re out of the way a little bit. So it seems like this isn’t just a concept, but an idea that Tesla wants to expand to several areas around the country or world.

Sending Energy to the Grid

This particular site doesn't have a Megapack or other form of energy storage, unlike the upcoming Harris Ranch Supercharger site in California. That means that Tesla won’t be storing the solar energy gained from this site, but instead will be either offsetting the immediate grid impact or serving energy back to the grid when the site isn’t actively charging.

Tesla will likely be incorporating V4 Superchargers, including both V4 posts and the new, more powerful V4 Cabinets, as the permit states that Tesla will be redesigning the site internally before beginning construction. For Cybertruck owners, 500kW charging may be around the corner.

We’re hoping Tesla continues to deploy these kinds of Supercharger sites around the world - they make a stylistic statement about Tesla’s futurism, like the Shell gas station that was upcycled into a Supercharger site earlier this year in Spain.

They also make a big impact for ownership because it is a far more comfortable charging experience when you stop at a site that’s shaded from the elements - and one that’s better for the environment with offset emissions.

Imagining Tesla’s Robotaxi Network Charging Stations

By Karan Singh
Not a Tesla App

It was a rainy April 1st when a news-searching author went on a delve into the depths of April Fools to find fact from falsehood. And while we found a lot of fantastic jokes, we also found some good ideas.

So, with a shoutout to MarcoRP on X, whose April Fool’s Joke gave us a good run for our money for a couple of minutes, we thought to ourselves - what would a Cybercab Charging Station / Cleaning Hub really look like?

Cybercab Wireless Charging Sites

Now, before continuing, we’d like to point out that the image up top is a joke from Marco - it isn’t an accurate or real site map submission from Tesla. However, it gave us the impetus to think critically about what is required for a Robotaxi fleet, based primarily on the Cybercab, to be able to service a city.

Requirements

Tesla will likely need to charge a small fleet of Cybercabs at a single time and in a single place. That means that the site needs to be large enough to cover a major metro area while also still being compact enough to not cost too much money to build out.

In addition, we need to factor in charge times. The Cybercab is likely to launch with a battery around 50 kWh, which will result in a range of approximately 300 miles. With that much range, the average Cybercab may not need to charge more than once or at all during daytime shifts, so instead, most of the vehicles will charge overnight.

MarcoRP

Math and Charge Times

The overnight charging means that most of these vehicles could be charged slowly. When we did some back-of-the-napkin math last year, we determined that Tesla’s wireless charger will likely peak around 17 kW (for comparison, Tesla’s Wall Connector at 32 amps charges at about 7 kW). If we scale Tesla’s wireless charger down slightly to 10 kW, accounting for some energy loss and the potential size of the site, that means a Cybercab will be able to charge in about 5 hours.

Tesla’s upcoming V4 Supercharger unit can currently handle 1.5MW per cabinet, but this slower-speed charging is A/C, not DC, which means there is a step-down loss of about 3-5%. Let’s make that a comfortable 10% for any other overages, but we can estimate around 1.35MW of power. That 1.3MW will easily handle charging up to 100 Cybercabs at once - all wirelessly, using Tesla’s unique beam-forming and beam-steering technology to keep efficiency high at every single stall.

Within about 5 hours, a whole fleet of 100 Cybercabs could be charged overnight when electricity rates are cheaper and still be out in time for the morning commute.

While this is all just hypothetical, it really does make sense that Tesla will be establishing these sites that won’t require much space or a ton of energy.

Tesla recently curtained off a large section of the parking garage at Giga Texas, as well as some of their chargers on the eastern end of the facility, leading us to believe they may just be testing this at scale internally.

There’s a lot to look forward to with Tesla’s V4 Supercharger deployment coming this year and with Robotaxi launching in just a couple of months.
