One of the upcoming features of the 2024 Tesla Holiday Update is the ability for Tesla owners to make custom wraps for their vehicles. The wraps will be displayed in the vehicle’s visualizations and in the Tesla app. You’ll also be able to select one of the wraps Tesla has provided if you prefer not to make or download your own.
This feature will roll out to the Cybertruck next week with the Holiday update, but it will be available for other models in the future as well.
Making your own wrap is super easy and takes just a few minutes. It doesn’t even require any special tools or software because Tesla provided a template.
Making a Custom Wrap
We’ll walk you through the steps to create your custom wrap. All you’ll need is an image editing program and an image editing program.
Download the Template
Tesla has all the details on their Github repository for Custom Wraps, but you can simply download the template below and open it in your favorite image editor like Adobe Photoshop, GIMP or even Windows Paint on Windows 11. Any software that supports layers will work.
Image Editor
Open the template in your image editor and create a new layer on top of it. You’ll want to edit on this new layer, not on the template layer, which we’ll hide later.

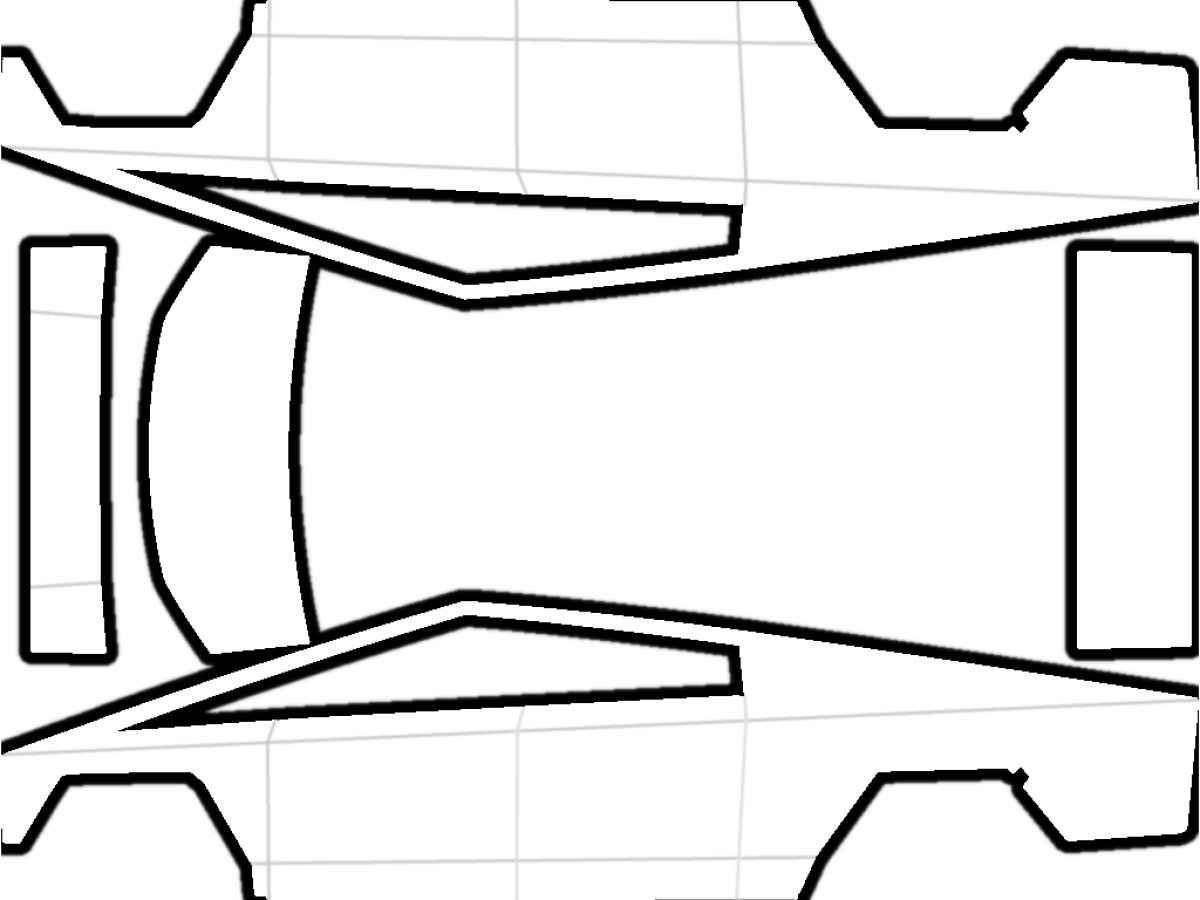

The template, in all its glory.
Not a Tesla App
Create the Wrap

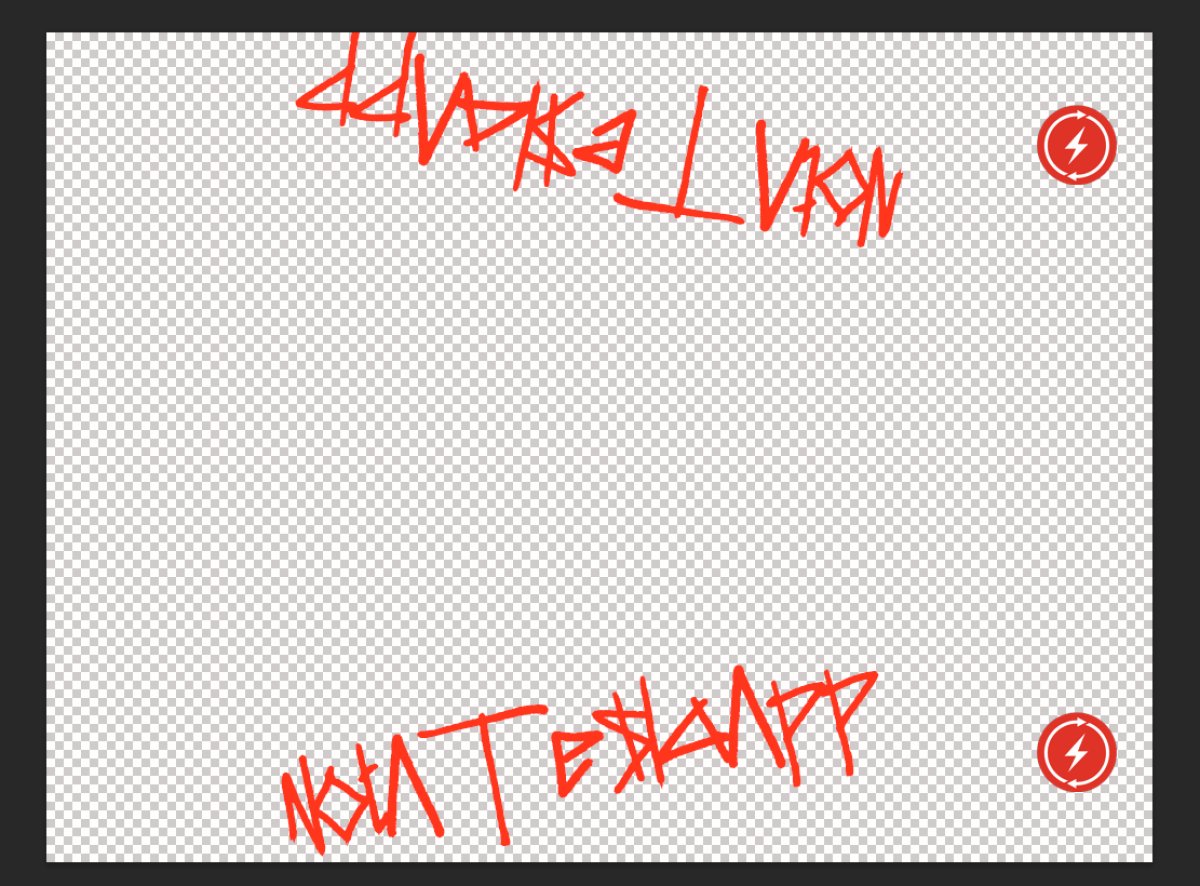

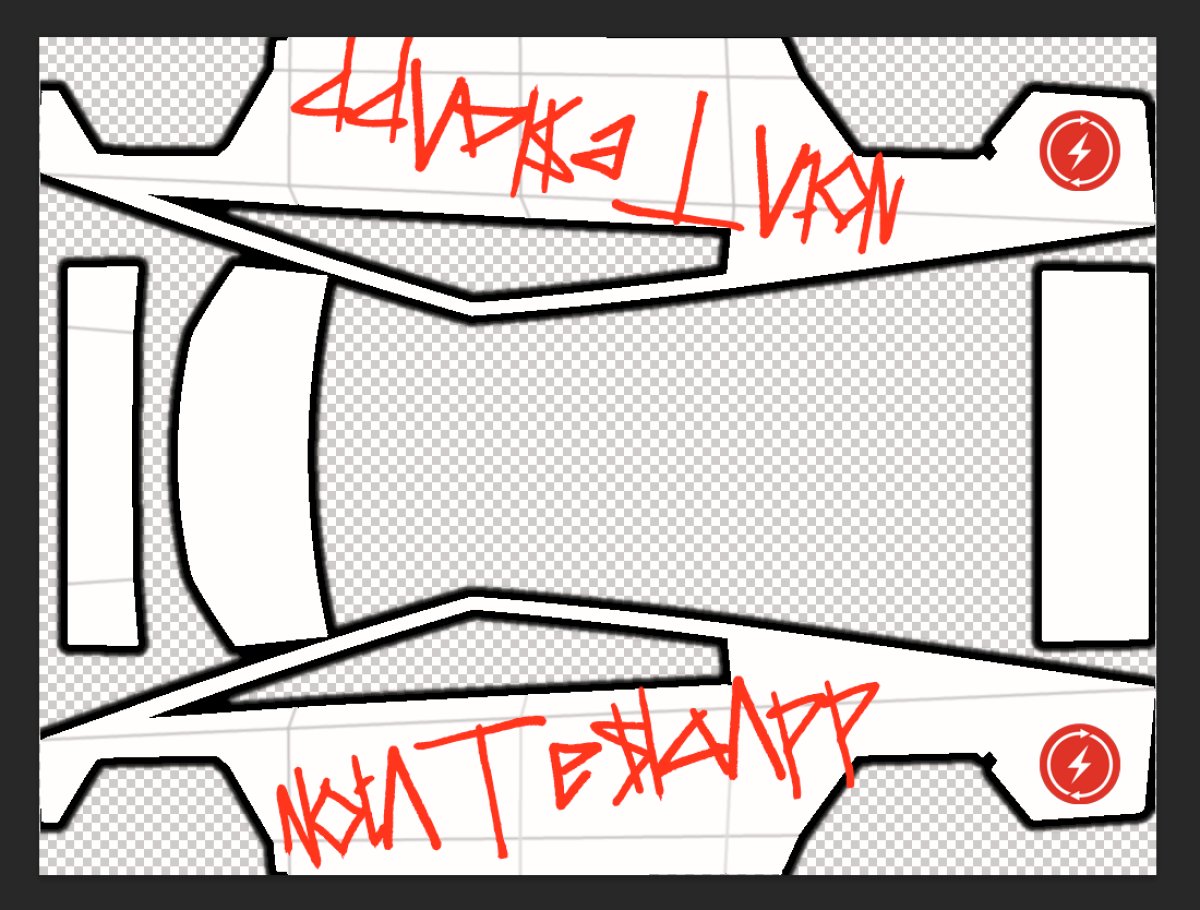

Go ahead and work your artistic magic—here, we’ve taken a graffiti rendition of Not A Tesla App and our logo and placed it within the template's bounds.
Flex those creative muscles!
Not a Tesla App
Hide the Template
Go ahead and hide the template layer - you can also delete the layer if you want. This standalone image doesn’t look like much, but this is what we need for the final step.
Looks a bit simple right?
Not a Tesla App
Export

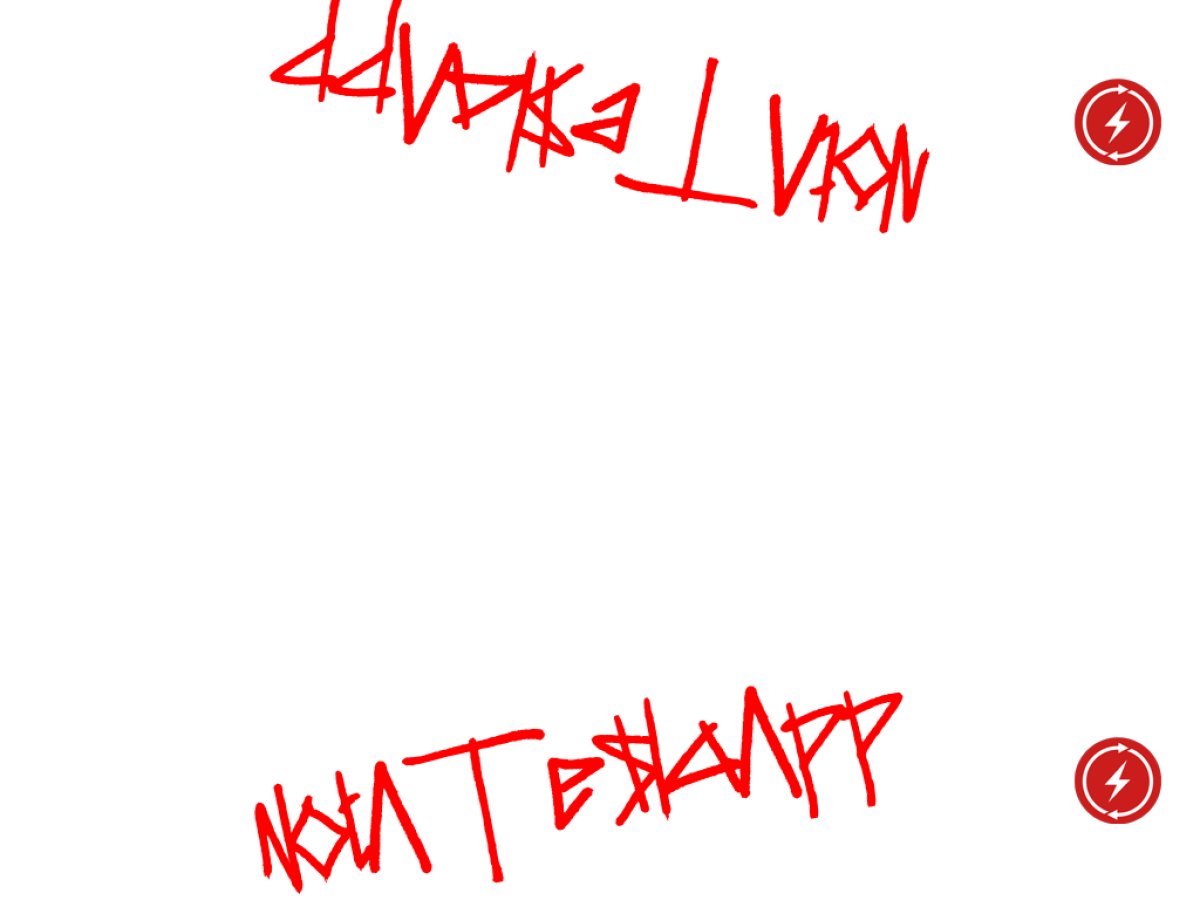

You’ll want to export the image with transparency - so it needs to be a .png file. You'll be good to go as long as it's the same dimensions as the template. We’ve gone ahead and exported our custom NATA wrap here - feel free to download it and let us know how it looks once you get the 2024.44.25 update.
The completed product.
Not a Tesla App
A couple of technical limitations:
The image must be 1024x768 pixels.
File Size max is 1MB.
You can’t use any special characters in the file name, and it must be shorter than 30 characters.
PNG is the only acceptable file format
You can load up to 10 images on your USB drive
Add Wrap to USB Drive
The last, and easiest step. Grab your USB drive, and create a folder called “Wraps” at the root level of the drive. Place your images in there, and you’re all set.
Load a Custom Wrap
Not a Tesla App

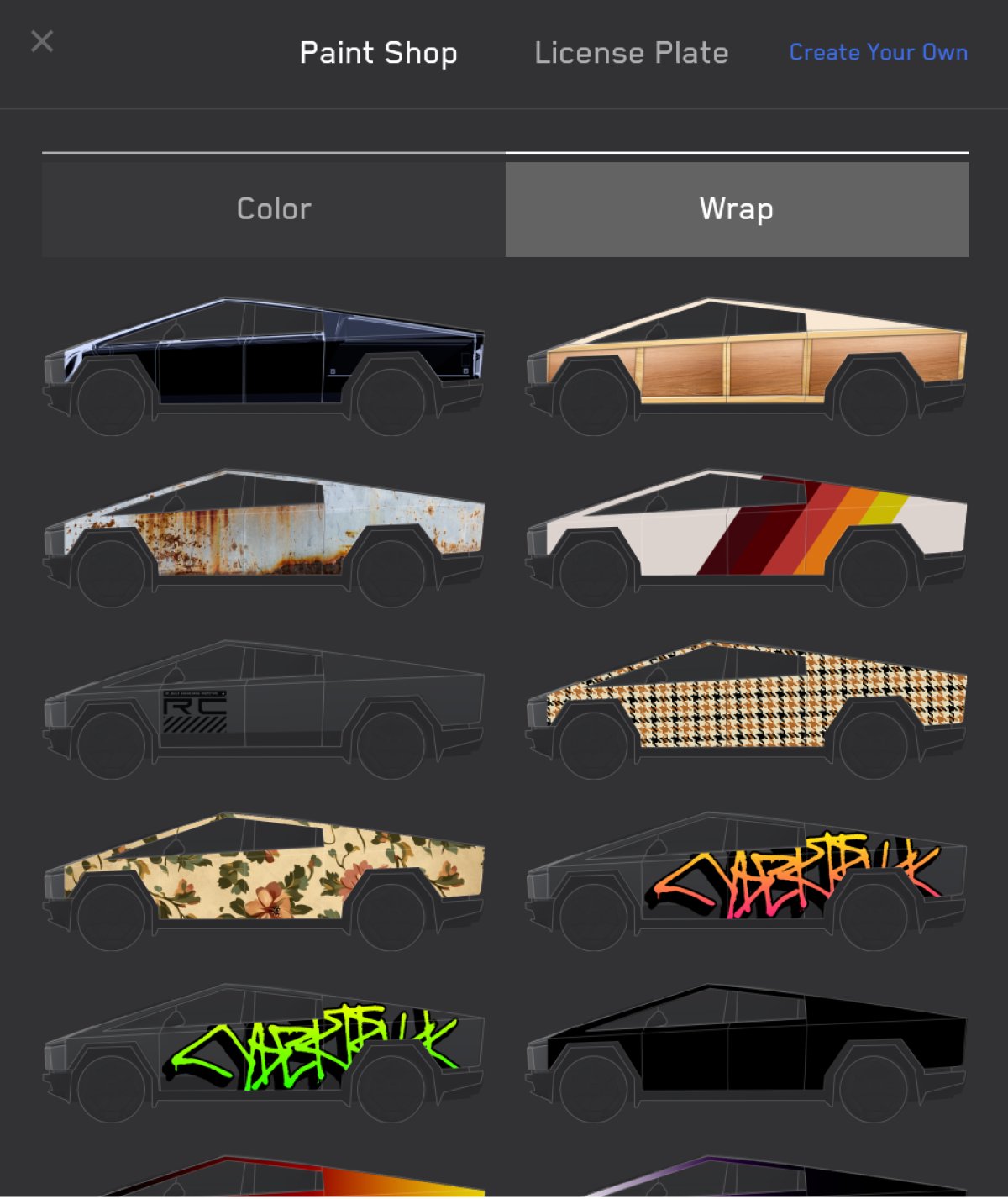

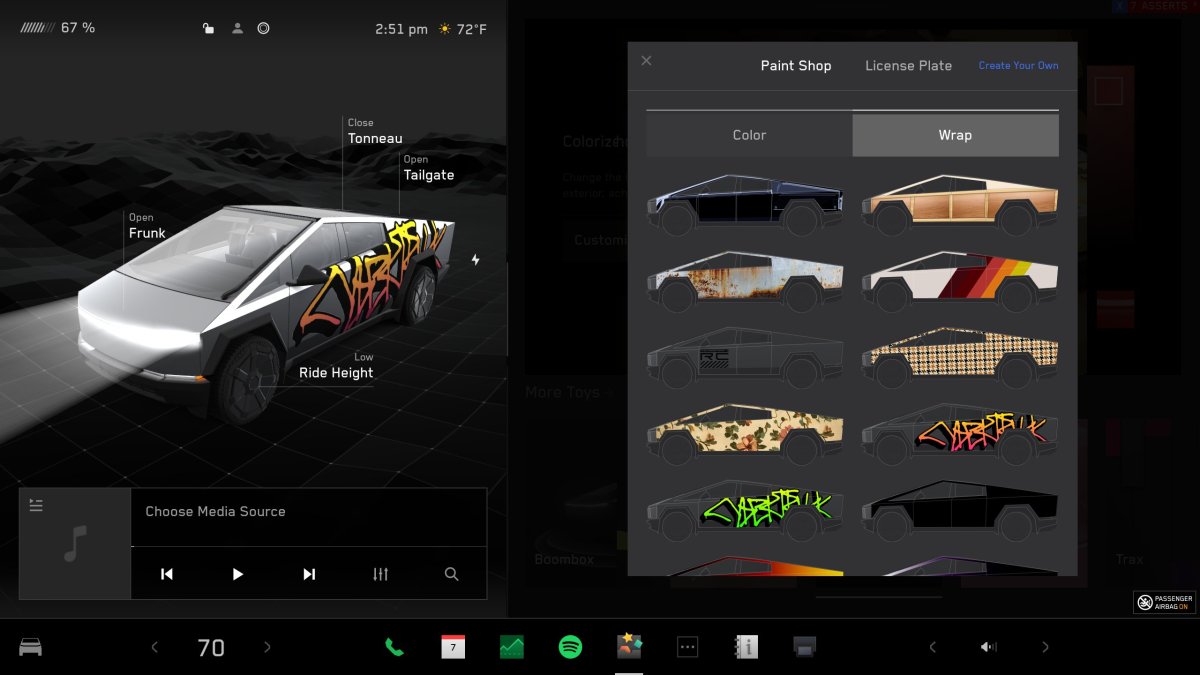

After placing the images on your USB drive and inserting it in your vehicle, you can then open Toybox > Paint Shop, and tap on Wrap. From there select your wrap from the custom list of images.
Tesla’s vehicles all have a built in Service Mode, where you can find working diagrams of anything from the HVAC system, low or high voltage systems, your power steering, or infotainment. All of this is included on-vehicle, and doesn’t require a third-party tool or subscription.
Of course, if you need more information, Tesla does offer Toolbox3, a fairly inexpensive subscription package that can be downloaded onto any laptop and connected to any Tesla - without the hassle of needing a special manufacturer-specific OBD tool.
Thanks to John Kelly for finding this. Let’s dig into it.
48V LVCS Connector Reference
Cybertruck runs on a 48V architecture, called LVCS, or Low-Voltage Connector Standard. They recently launched this standard to the rest of the automotive industry, in hopes of promoting standardization and progress.
48V and LVCS offer Tesla the unprecedented ability to optimize the wiring inside Cybertruck and future vehicles, massively reducing the complexity and cost - and also ensuring that everything within the vehicle is networked. That networking means that you can also debug the Cybertruck’s wiring from within the vehicle - without needing to disassemble the entire thing.
The wiring diagram, set to the front cabin view.
John Kelly on X
The Wiring Service Diagram offers the ability to search for particular connectors, and also see where the wiring runs originate and terminate. And that’s not all - you’re also able to pull up the pinouts, wire colors, and harness connections to see everywhere that specific connector brings data, power, or anything else to.
The pinout view for a particular connector.
John Kelly on X
This is an fantastic update, and enables anyone, including a DIY home mechanic, to be able to figure out exactly what might be wrong with a particular system, as well as how to potentially correct it. In addition, all of this data is freely available within the vehicle, and nothing else is required to be able to access it other than sitting down and entering Service Mode Plus.
How to Access It
For this particular interface, you’ll need to access Tesla’s Service Mode Plus, which means you’ll need a subscription to Toolbox 3, Tesla’s Service Software. We won’t walk you through that procedure here, as we recommend you review Tesla’s Service Manuals before jumping in.
Assuming you know what you’re doing, once TB3 is setup and connected to the vehicle, you can enter Service Mode Plus from the TB3 primary menu, and then navigate your way to the Low Voltage section. The Connector Reference Tool is its own sub-heading, and the search tool to look for particular connectors is in the top right.
Tesla has recently committed new code to its Light Show Github repository that reveals several additional Lightshow features and shares specifications for others.
Tesla hosts the software for building Lightshows on GitHub, an open-source code repository. The new code was added five days ago, but given that this is a change to the actual software and not an on-vehicle change, we’re not sure whether the features below will be available for immediate use or will be available in a future software update.
Up to Four-Hour Long Light Shows
The feature update is pretty extensive and, for the most part, is focused on the Cybertruck and Model 3 Highland, but also features changes for other Tesla models.
There’s one general change, which now lets you create Light Shows that are up to four hours in length — yes, that’s really long. In the Holiday update, Tesla mentioned that Light Shows can now be longer, but this recent commit makes it seem like Tesla is essentially removing the limit of how long a Light Show can be.
Front & Rear Light Bars
On the outside of the Cybertruck, you’ll now be able to control the front light bar, but what’s even better is that you can control each of the 60 LEDs individually. The rear light bar is seeing similar improvements, letting you control each of the 52 LEDs individually.
This feature alone is going to create some amazing Light Shows, anything from which has 60 individually configurable LEDs each. The rear light bar has 52 individually controllable LEDs as well.
This alone is going to inspire some really creative designs, such as a Knight Rider-like animation as seen on Rivian.
These are, of course, locked to just white for the front light bar and red for the rear, but Lightshow designers will be able to configure how bright each individual LED is and feather them up and down in brightness.
As we saw in the absolutely epic Tesla octa-truck Lightshow, the off-road lightbar is also controllable on vehicles that have it equipped. For now, that’ll just be Foundation-Series Cybertrucks, but the lightbar has been confirmed to be compatible with the non-Foundation-Series vehicles once it arrives in the Tesla shop later this year.
The off-road lightbar has six segments - two side-facing ditch lights and four forward-facing lights. Although you won’t be able to address individual LEDs here, you’ll be able to control each segment (six total) and brightness.
This feature was added as part of the Holiday update, so it should be available for all vehicles on 2024.44.25 and higher.
Center Display Color
Over on the interior side, designers will get full RGB control for the center display. Even when viewing the light show from the exterior of the vehicle, the center display will light up the interior in any color of your choice, letting you add festive colors to your Light Shows.
The interior display is also available on the Holiday update and is available for all vehicles, including legacy Model S and Model X vehicles that support Light Shows.
Ambient Lighting
This one has been a long time coming, but you’ll finally be able to control the vehicle’s ambient lighting feature on the Cybertruck and new Model 3. The accent lights are split into five segments and are all controllable RGB, so you can set each section to a different color if you want. The sections include center front, left and right front, and left and right rear.
These are some massive additions to Tesla’s Light Show feature, and they’re arguably some of the best. The individually controllable LEDs in the light bars and the ability to choose colors for the first time will undoubtedly create some of the best Light Shows we’ve ever seen.
Unfortunately, Christmas is behind us now, but we’re sure developers will find other holidays that take advantage of colors, such as Independence Day.
Light Shows bring the Tesla community together, and they’re one of the most distinctive Tesla features. Enjoy the awesome Christmas Light Show compilation below. Thanks to Rhys Samson for sharing these Light Show changes with us.
