We’ve now uncovered more details on how Tesla achieved such drastic improvements in the vehicle’s power consumption, which Tesla estimated to be a 40% reduction.
Tesla made architectural changes to how it processes and analyzes video — optimizing which components handle which tasks. While the Cybertruck is the first to benefit from these advancements, Tesla plans to extend these upgrades to other vehicles in the future.

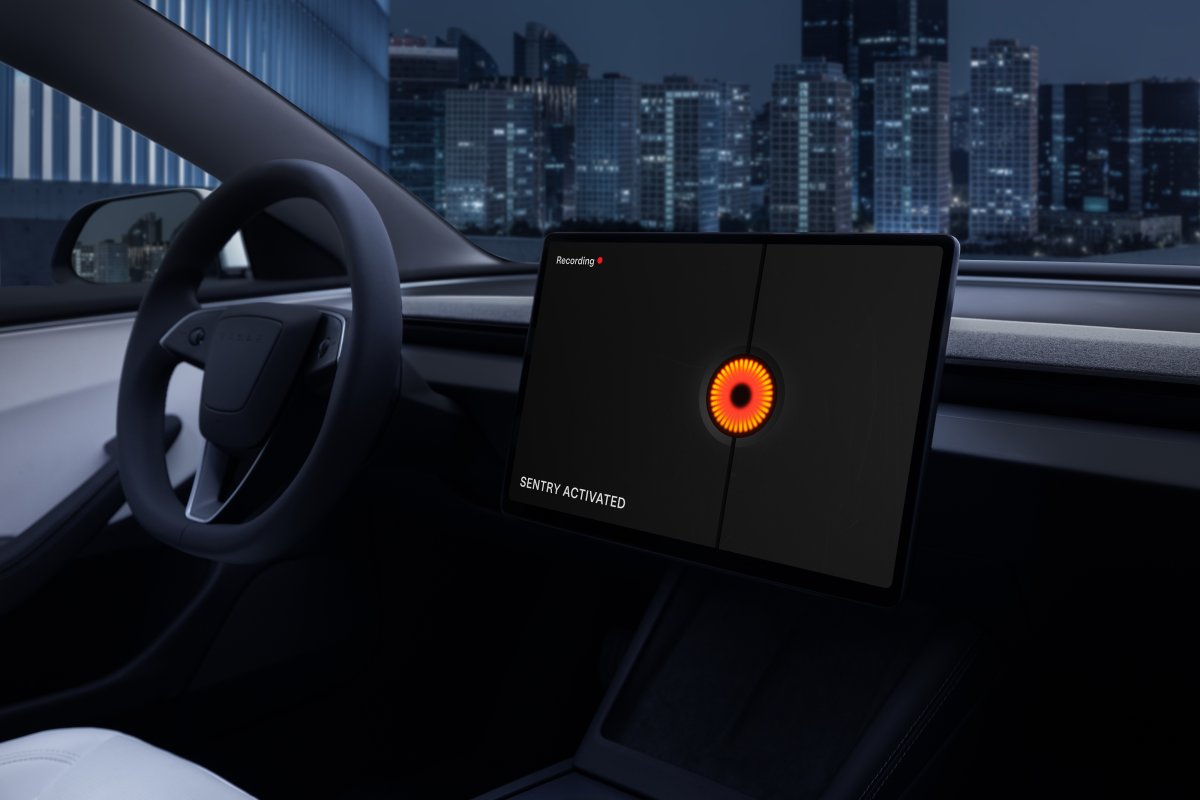

Sentry Mode Power Consumption
Tesla vehicles feature two main computers: the MCU (Media Control Unit) computer, which powers the vehicle’s infotainment center, and the FSD computer, which is responsible for Autopilot and FSD. Both of these computers remain on and powered any time the vehicle is awake, consuming about 250-300 watts.
Typically, the vehicle only uses this power while it’s awake or actively driving. It’s not a major concern since the car automatically goes to sleep and shuts down its computers after about 15 minutes of inactivity. However, the larger issue is that these computers also need to remain on when Sentry Mode is active, causing a 250-watt draw whenever Sentry Mode is on.
Interconnected System
Today, the vehicle’s cameras are connected to the FSD computer, which connects to the MCU, which is finally connected to the USB ports. Because of this interconnected setup, everything needs to remain powered. Footage needs to be streamed from the FSD computer into the MCU, where processes like motion detection occur. The data then needs to be compressed before finally being written to the USB drive. That’s a lengthy process, requiring multiple computers to remain on in order to be able to record and save live video.
Architectural Changes
Tesla is making some architectural changes to address Sentry Mode’s high power consumption by shifting the responsibilities of the vehicle’s computers. By shifting motion detection and possibly the compression activity to the FSD computer, Tesla will now be able to keep the MCU computer asleep. The MCU is still required to push the video to the USB drive, but Tesla can now wake up the system only when it’s needed.
For instance, the FSD computer will still handle the connection to the vehicle’s cameras, but it will now also detect motion. When that Sentry event occurs, it can wake up the MCU to write the data to the USB drive and then have it go back to sleep.
This approach ensures the MCU isn’t continuously powered to analyze and compress video, instead activating it only when data needs to be written.
Processor Isolation & Task Allocation
Tesla’s current architecture separates the Autopilot Unit (APU) from the MCU. This is done for several reasons - but first and foremost is safety. The MCU can be independently restarted even mid-drive without impacting the APU and key safety features.
Additionally, by isolating the APU from the MCU, tasks that are optimized for each unit—processing versus image transcoding—can be offloaded to the processing unit that’s better suited for it. This helps keep both the APU and MCU operating at their optimal power and performance parameters, helping to manage energy consumption more efficiently.
Kernel-Level Power Management
Tesla’s been working on more than just FSD or new vehicle visualization changes and has been putting in the effort to optimize the operating system’s underlying kernel. While not in heavy use, Tesla is underclocking the processors of both the MCU and APU, reducing power usage and heat generation.
Of course, other kernel optimizations and programming tricks, such as the ones Tesla uses to optimize its FSD models, also factor into the increased overall efficiency of the vehicles.
Additional Benefits
Since Tesla vehicles also include a Dashcam that processes video, it’s possible we may also see these additional power savings whenever the vehicle is awake. This could also affect other features, such as Tesla’s Summon Standby feature, which keeps the vehicle awake and processing video to give users almost instant access to the vehicle’s Summon feature.
Roll Out to Other Vehicles
While the Cybertruck was the only vehicle to receive these power improvements to Sentry Mode, we were told that they’re coming to other vehicles too. Tesla is introducing these changes with the Cybertruck first, leveraging its smaller user base for initial testing before expanding the rollout to other vehicles.
USB Port Power Management
To further conserve energy and reduce waste, Tesla now powers down USB ports, even if Sentry Mode is active. This change has impacted many users who rely on 12v sockets or USB ports to remain powered to keep accessories such as small vehicle refrigerators on.
It’s not immediately clear whether these changes to Sentry Mode impact this change or whether power to 12v outlets was removed strictly due to safety concerns.
Subscribe
Subscribe to our newsletter to stay up to date on the latest Tesla news, upcoming features and software updates.
Back in 2023, Tesla put together a rather unique Supercharger site idea - one with a CyberCanopy. This canopy is intended to provide solar power for Supercharging, helping to reduce the impact on the local grid while also providing a futuristic and Cybertruck-themed location that would set it apart.
Unfortunately, the plans never moved beyond the filing stage. Instead, Tesla opened a standard-looking Supercharger at the same Canton, Massachusetts location. However, the site is still well-situated just off the highway and benefits from natural tree cover in the parking area.
However, Tesla is at it again with a concept for another CyberCanopy with RGB lighting. Thanks to MarkoRP for spotting this. No April Fool’s this time.
We want to build a few Superchargers cool enough to be worthy of the trip itself. - Max de Zegher
CyberCanopy 2
This second Supercharger with CyberCanopy is set for Roswell, New Mexico, at the Whataburger in town. Featuring just eight stalls, this will be one of Tesla’s smaller Supercharger sites, but for what it lacks in size, it makes up for it in uniqueness. The charging stalls are covered from the rain by a futuristic, Cybertruck-themed canopy, which will have solar panels installed on the top of it.
According to the plans, the CyberCanopy boasts 20.88kW of solar panels on its roof, providing shelter from the elements while also providing some power back to the grid.
RGB Lighting
At nighttime, the Supercharger will make a big statement. Tesla intends to light the long edges of the canopy, which will not only look amazing, but it’ll actually make finding the Supercharger easier in a large parking lot.
The lighting coming off the edge of the canopy reminds us a lot of the lightbar on the Cybertruck and now the new Model Y. It’s definitely the direction Tesla is moving for all their models, so expect all future models to have it, including the new Roadster and the next-gen model.
Tesla’s Max de Zegher also took to X after the plans for the new Supercharger were found and shared the image above. He stated that Tesla wants to build a few cool Superchargers that will be worth stopping at, even if they’re out of the way a little bit. So it seems like this isn’t just a concept, but an idea that Tesla wants to expand to several areas around the country or world.
We want to build a few Superchargers cool enough to be worthy of the trip itself. Wish we could have kept it under wraps for longer, but submittal was needed for Planning Approval. We can't hide anything from @MarcoRPi1! 🙂 pic.twitter.com/X2WaKDd408
This particular site doesn't have a Megapack or other form of energy storage, unlike the upcoming Harris Ranch Supercharger site in California. That means that Tesla won’t be storing the solar energy gained from this site, but instead will be either offsetting the immediate grid impact or serving energy back to the grid when the site isn’t actively charging.
Tesla will likely be incorporating V4 Superchargers, including both V4 posts and the new, more powerful V4 Cabinets, as the permit states that Tesla will be redesigning the site internally before beginning construction. For Cybertruck owners, 500kW charging may be around the corner.
We’re hoping Tesla continues to deploy these kinds of Supercharger sites around the world - they make a stylistic statement about Tesla’s futurism, like the Shell gas station that was upcycled into a Supercharger site earlier this year in Spain.
They also make a big impact for ownership because it is a far more comfortable charging experience when you stop at a site that’s shaded from the elements - and one that’s better for the environment with offset emissions.
It was a rainy April 1st when a news-searching author went on a delve into the depths of April Fools to find fact from falsehood. And while we found a lot of fantastic jokes, we also found some good ideas.
So, with a shoutout to MarcoRP on X, whose April Fool’s Joke gave us a good run for our money for a couple of minutes, we thought to ourselves - what would a Cybercab Charging Station / Cleaning Hub really look like?
Cybercab Wireless Charging Sites
Now, before continuing, we’d like to point out that the image up top is a joke from Marco - it isn’t an accurate or real site map submission from Tesla. However, it gave us the impetus to think critically about what is required for a Robotaxi fleet, based primarily on the Cybercab, to be able to service a city.
Requirements
Tesla will likely need to charge a small fleet of Cybercabs at a single time and in a single place. That means that the site needs to be large enough to cover a major metro area while also still being compact enough to not cost too much money to build out.
In addition, we need to factor in charge times. The Cybercab is likely to launch with a battery around 50 kWh, which will result in a range of approximately 300 miles. With that much range, the average Cybercab may not need to charge more than once or at all during daytime shifts, so instead, most of the vehicles will charge overnight.
MarcoRP
Math and Charge Times
The overnight charging means that most of these vehicles could be charged slowly. When we did some back-of-the-napkin math last year, we determined that Tesla’s wireless charger will likely peak around 17 kW (for comparison, Tesla’s Wall Connector at 32 amps charges at about 7 kW). If we scale Tesla’s wireless charger down slightly to 10 kW, accounting for some energy loss and the potential size of the site, that means a Cybercab will be able to charge in about 5 hours.
Tesla’s upcoming V4 Supercharger unit can currently handle 1.5MW per cabinet, but this slower-speed charging is A/C, not DC, which means there is a step-down loss of about 3-5%. Let’s make that a comfortable 10% for any other overages, but we can estimate around 1.35MW of power. That 1.3MW will easily handle charging up to 100 Cybercabs at once - all wirelessly, using Tesla’s unique beam-forming and beam-steering technology to keep efficiency high at every single stall.
Within about 5 hours, a whole fleet of 100 Cybercabs could be charged overnight when electricity rates are cheaper and still be out in time for the morning commute.
While this is all just hypothetical, it really does make sense that Tesla will be establishing these sites that won’t require much space or a ton of energy.
Tesla recently curtained off a large section of the parking garage at Giga Texas, as well as some of their chargers on the eastern end of the facility, leading us to believe they may just be testing this at scale internally.
There’s a lot to look forward to with Tesla’s V4 Supercharger deployment coming this year and with Robotaxi launching in just a couple of months.
